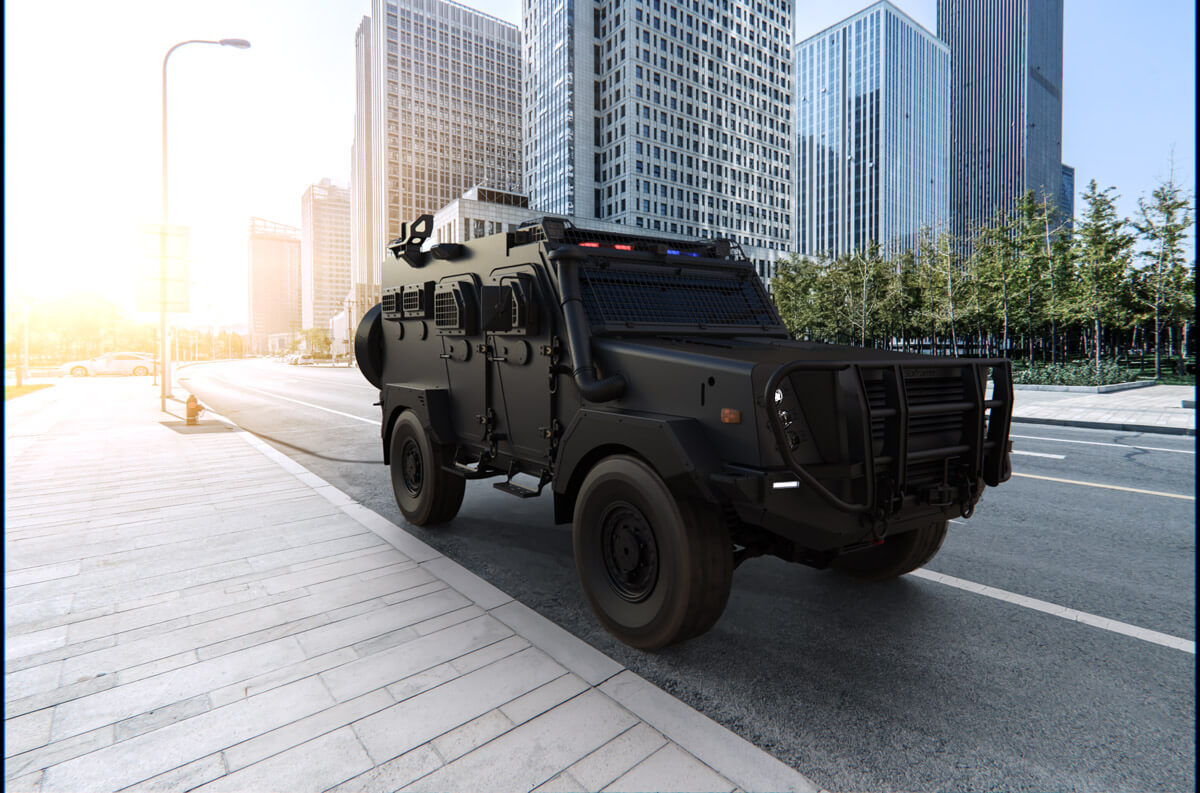

APCL – Armoured Personal Carrier Light

L’APCL ensure the safe movement and comfort of 9 people.

APCL – Armoured Personal Carrier Light

The APCL has a STANAG-certified armoured structure ensuring the safe movement and comfort of 8 people.

The vehicle is designed to be equipped with mission systems controlled from inside the vehicle.

It has a GVWR of 12 tons and permanent all-wheel drive.

Its 6-cylinder engine delivers torque of 970 Nm and generates 210 kW (285 hp) for a steady speed of 110 km/h.

Its independent suspension provides greater comfort, better traction, improved safety and stability both on- and off-road at low or high speed.

It can also be given a rear steering axle to optimise road handling and facilitate low-speed manoeuvrability, particularly in entangled or unstructured spaces.

Technical characteristics

  • GVWR : 12 tonnes
  • Protection : level 1 to 3
  • Ground clearance : 350 millimeters
  • Maximum speed : 110 km/hour
  • Gearbox : Automatic
  • Range : 600 kilometers
  • Engine : 210 kilowatt (285 hp)
  • Fording : 750 millimeters
  • Slope : 60%
  • Side slope : 30%
  • Trench : 900 millimeters
  • Step : 400 millimeters
  • Crew : 8
  • Turning circle : 13 meters
  • Payload : 1720 kilos
  • Departure angle : 35 degrees
  • Approach angle : 45 degrees

Dimensions

  • Length : 6304 millimeters
  • Width : 2500 millimeters
  • height : 2722 millimeters
